3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances

  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
  • 3.71 Inch Bar Type LCD Display with 240(RGB) x 960 Dots and MIPI Interface for Home Appliances
Menşe yeri Çin
Marka adı HuaXin
Sertifika ISO14001/ISO9001/IATF16949
Model numarası ESHXT035BWV8696ANT
Min sipariş miktarı 1000
Fiyat pazarlık edilebilir
Ambalaj bilgileri blister+köpük kutusu+kabarcık çanta+iç karton+ana karton
Teslim süresi 6weeks ~ 8 hafta
Ödeme koşulları T/T
Yetenek temini Ayda 100 bin.
Ürün ayrıntıları
Ekran Teknolojisi Çubuk Tip LCD İsim çubuk tipi TFT
Boyut 6,9" Çözünürlük 280 (RGB) x 1424
Parlaklık 300 Cd/m2 Teslimat süresi Serbest bakış açısı
Arayüz Hava akışı anahtarı Sürüş ic AXS15231
Arka ışıklar 8 LED Boyut 3.71 inç
Çözünürlük 240(RGB) x 960
Mesaj bırakın
Ürün Açıklaması
3.71 Inch Bar Type Color LCD Display
240(RGB) x 960 Dots with MIPI Interface for Home Appliances Use
Product Specifications

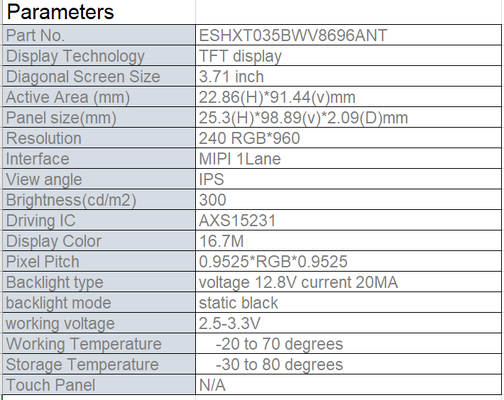

3.71 inch bar type LCD display specifications
Product Images

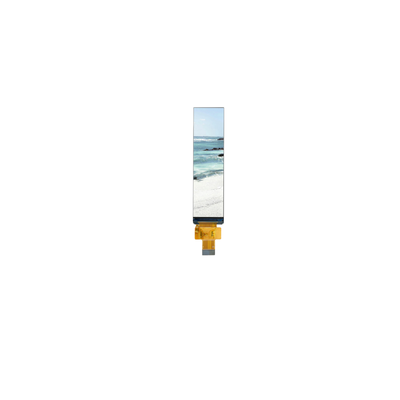

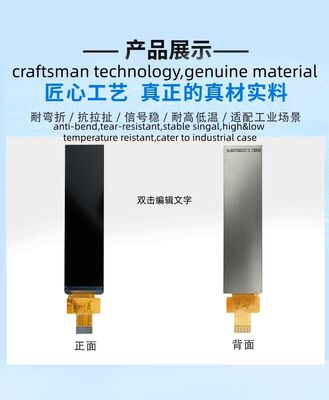

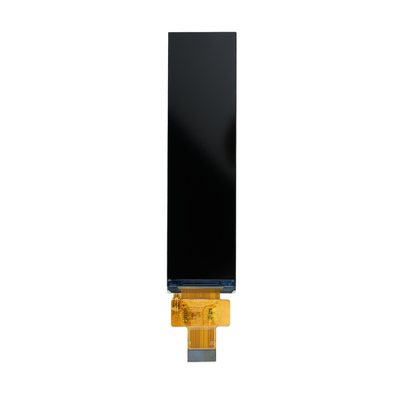

3.71 inch bar type LCD display product view 3.71 inch bar type LCD display side view 3.71 inch bar type LCD display close-up 3.71 inch bar type LCD display detailed view
Technical Drawing

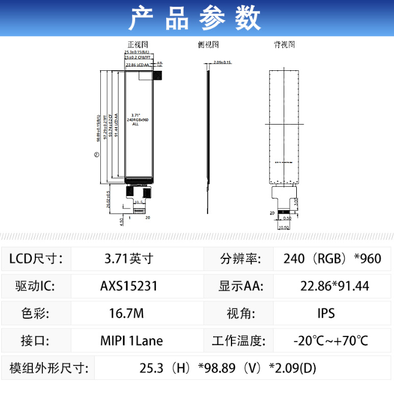

3.71 inch bar type LCD display technical drawing
TFT Technology Overview
TFT substrate and CF substrate input flow diagram TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
  • Founded: 2009
  • Location: Hubei, Enshi
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D team: 10% of workforce
  • QC team: 15% of workforce
Company Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years experience in LCD field
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide viewing angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternative technologies
  • Size Flexibility: Available in sizes from small handheld to large panels
  • Backlighting: Typically uses LED backlight systems
  • Versatility: Wide range of applications across industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Moderate contrast ratio
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving images
  • Limited flexibility in physical form
  • Restricted color gamut compared to some alternatives
