2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface

  • 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
  • 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
  • 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
  • 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
  • 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
  • 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface
Menşe yeri Çin
Marka adı HuaXin
Sertifika ISO14001/ISO9001/IATF16949
Model numarası HX20WV002B
Min sipariş miktarı 1000
Fiyat pazarlık edilebilir
Ambalaj bilgileri blister+köpük kutusu+kabarcık çanta+iç karton+ana karton
Teslim süresi 6weeks ~ 8 hafta
Ödeme koşulları T/T
Yetenek temini Ayda 100 bin.
Ürün ayrıntıları
Ekran Teknolojisi Ips TFT LCD Ekranı İsim TFT Modülü
Boyut 2,0" Çözünürlük 480(RGB)*360
Sürüş ic ST7701S Teslimat süresi HEPSİ 0' saat
Arayüz MIPI/RGB 18BIT
Vurgulamak

2.0 TFT LCD module MIPI interface

,

480x360 resolution TFT color display

,

ST7701S driving IC TFT module
Mesaj bırakın
Ürün Açıklaması

2.0" TFT LCD Module,480(RGB)X360 Resolution, MIPI/RGB 18bit Interface, Driving IC ST7701S,ALL o'clock ,500cd,4LEDS
Product Specifications
Part NO.HX20WV002B
Display TechnologyIPS TFT LCD
Diagonal Screen Size 2.0inch
Active Area (mm)40.824(W)X30.618(H)
Panel size(mm)46.00(W)X40.80(H)X3.70(T)
Brightness(cd/m2)500
Resolution480(RGB)*360
InterfaceMIPI/RGB 18bit
View angle ALL o'clock
Driving IC ST7701S

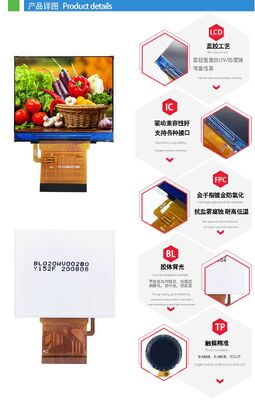

Product Picture


 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface 0


 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface 1


 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface 2

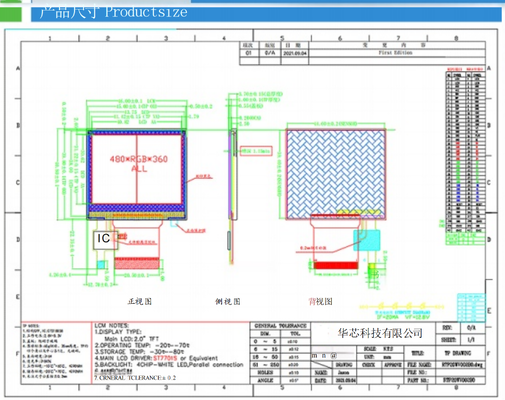

Technical Drawing

 2.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface 32.0 Inch TFT LCD Module with 480(RGB)x360 Resolution and MIPI/RGB 18bit Interface 4



TFT Technology Overview
TFT substrate input and CF substrate input flow chart TFT structure diagram
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD
Located in Hubei, Enshi | Founded: 2009
High-technology enterprise specializing in R&D, production, and sales of LCD, LCM, TFT, backlight, and OLED displays
Company Advantages:
  • Cost-effective factory base in inland city
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • Expert engineering team with 20+ years experience
  • Custom product design capabilities
Certifications: ISO14001, ISO9001, IATF16949, SGS for LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+ employees
  • R&D accounts for 10% of workforce
  • QC accounts for 15% of workforce
Production Capacity
Product Type20212022202320242025Unit
LCD Production4.59999Thousands of logarithms/Day
LCM Production70150300450450Thousand pieces/Day
Backlight Production100200300500500Thousand pieces/Day
OLED Production1020304050Thousand pieces/Day
Product Applications
  • Car navigation systems & printers
  • Video call systems & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution, sharpness, and color accuracy
  • Fast response times for quick pixel switching
  • Wide viewing angles with minimal color shifts
  • Energy-efficient operation
  • Available in various sizes from small handheld to large panel displays
  • LED backlighting for screen illumination
  • Wide range of applications across multiple industries
TFT Display Limitations
  • Limited viewing angles compared to some technologies
  • Limited contrast ratio
  • Backlighting requirements and power consumption
  • Response time limitations and potential motion blur
  • Limited flexibility in display form factors
  • Limited color gamut range
