2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications

  • 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
  • 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
  • 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
  • 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications
Menşe yeri ÇİN
Marka adı HuaXin
Sertifika ISO14001/ISO9001/IATF16949
Model numarası HX0279-01
Min sipariş miktarı 1000
Fiyat Negotiated
Ambalaj bilgileri blister+köpük kutusu+kabarcık çanta+iç karton+ana karton
Teslim süresi 6weeks ~ 8 hafta
Ödeme koşulları T/T
Yetenek temini Ayda 100 bin.

Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Ekran Teknolojisi LCD ekranı İsim TFT LCD
Boyut 2,79“ Ekran tipi IPS
Arayüz SPI Görünüm açısı Tümü
Çözünürlük 142x428 Parlaklık 400C/D
Vurgulamak

2.79 Inch Bar Type TFT Display

,

142x428 Resolution TFT LCD

,

Industrial Applications IPS Display
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface

High-performance industrial-grade TFT display featuring bar-type form factor, SPI interface, and excellent viewing characteristics.

Product Specifications
Parameter Value
Part No. HX0279-01
Display Size 2.79 inch bar type TFT display

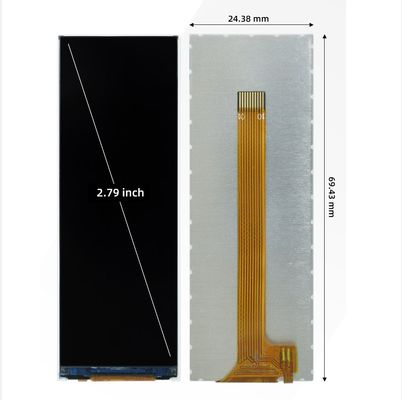

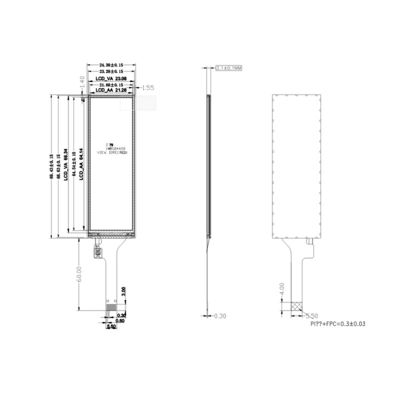

Outline Size (mm) 24.38*69.43*2.1
AA Size (mm) 21.28x64.14
Resolution 142x428
Interface SPI
Driver IC NV3007
Brightness 400c/d
View Angle ALL

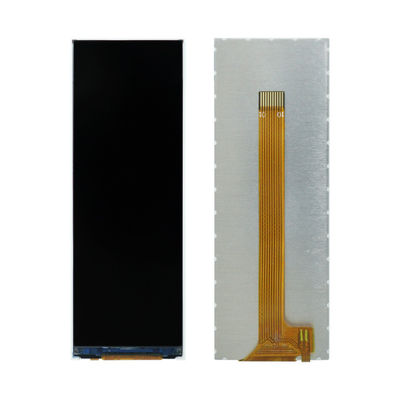

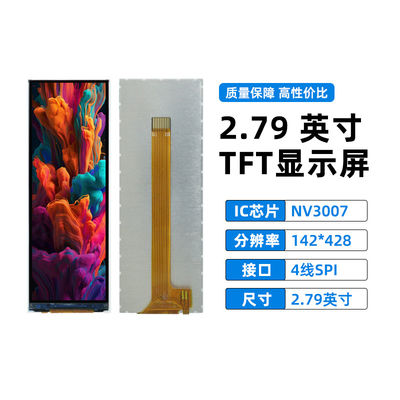

Product Images
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 0 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 1 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 2 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 3
TFT Technology Overview
2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 4 2.79 Inch Bar Type TFT Display with 142x428 Resolution and SPI Interface for Industrial Applications 5
Key Features
  • Superior Image Quality: High resolution, sharpness, and color accuracy
  • Fast Response: Quick pixel switching for smooth performance
  • Wide Viewing Angles: Clear visibility from multiple positions
  • Energy Efficient: Optimized power consumption
  • LED Backlit: Bright, uniform illumination
Applications
  • Car navigation systems & printers
  • Video communication & digital signage
  • Automotive interfaces & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
Technical Considerations
Potential Limitations
  • Optimal viewing within specific angles
  • Contrast ratio limitations in bright environments
  • Backlight power requirements
  • Potential motion blur in fast-moving content
  • Fixed form factor (non-flexible)
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED solutions with 500+ employees and 20+ years of industry experience.

Company Advantages
  • Cost-effective inland manufacturing base
  • Advanced automated production equipment
  • 20+ years experienced engineering team
  • Custom design capabilities
  • Certifications: ISO14001, ISO9001/IATF16949, SGS
Product Portfolio
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
