1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,

  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
  • 1.12-inch IPS TFT LCD Screen | 50×160 Dot Matrix Serial Screen with GC9D01 Driver,
Menşe yeri ÇİN
Marka adı HuaXin
Sertifika ISO14001/ISO9001/IATF16949
Model numarası HX112FHD010
Min sipariş miktarı 1 ~ 1000
Fiyat $2~$1.6
Ambalaj bilgileri blister+köpük kutusu+kabarcık çanta+iç karton+ana karton
Teslim süresi 6weeks ~ 8 hafta
Ödeme koşulları T/T
Yetenek temini ayda 200K
Ürün ayrıntıları
Ekran Teknolojisi lcd ekran modülü İsim TFT LCD
Boyut 1.12 inç Çözünürlük 50 × 160
Parlaklık 350c/d Arayüz 4 Hatlı SPI
Görünüm açısı Tümü
Vurgulamak

1.12-inch IPS TFT LCD screen

,

50×160 dot matrix serial screen

,

bar type TFT with GC9D01 driver
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Mesaj bırakın
Ürün Açıklaması
1.12-inch IPS TFT LCD Screen | 50*160 Dot Matrix Serial Screen with GC9D01 Driver
Special for Industrial Equipment Status Bars / Smart Wearables, High Definition, Low Power Consumption
Product Parameters
Part No. HX112FHD010
Display Size 1.12 inch TFT display
Outline Size (mm) 10.8(H)*32.18(V)*2.11(D)(mm)
AA Size (mm) 8.49*27.17(mm)
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Resolution 50*160
Interface 4 LINE SPI
Driving IC GC9D01
Brightness 350C/D
View Angle All
Product Images

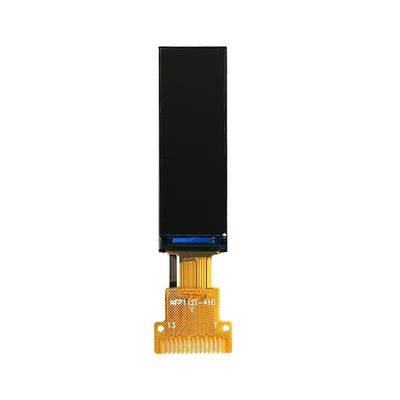

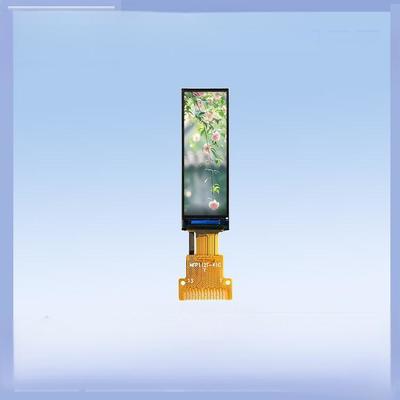

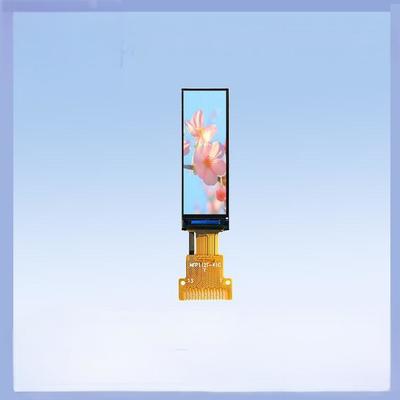

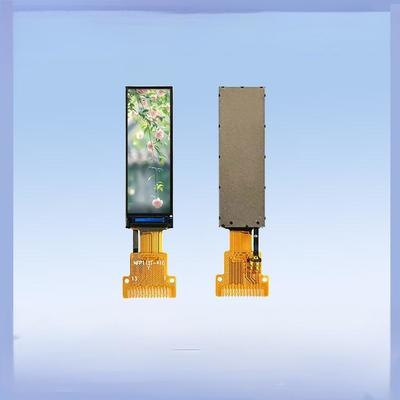

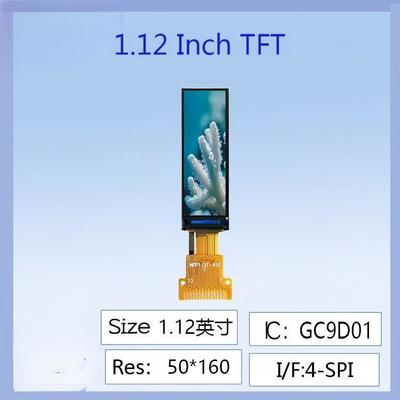

1.12-inch IPS TFT LCD Screen front view 1.12-inch IPS TFT LCD Screen side view 1.12-inch IPS TFT LCD Screen close-up 1.12-inch IPS TFT LCD Screen with components 1.12-inch IPS TFT LCD Screen technical view
Technical Drawings
1.12-inch IPS TFT LCD Screen technical drawing 1.12-inch IPS TFT LCD Screen dimensional drawing
TFT Product Knowledge
TFT substrate input and CF substrate input flow chart TFT structure diagram
Company Information
Huaxin Technology (Enshi) Co., LTD

Hubei, Enshi | Founded: 2009

High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED displays.

Company Advantages:
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Fully automated processes for efficiency
  • 20+ years of LCD industry experience
  • Custom product design capabilities
Certifications:
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Product Portfolio:
  • LCD: VA, TN, HTN, STN, FSTN, CSTN series
  • LCM: COB, TBA, COG, TP, LED backlight series
Company Statistics:
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: Excellent with high resolution, sharpness, and color accuracy
  • Response Time: Fast switching of pixels
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than other technologies
  • Size and Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED backlighting
  • Applications: Wide range of industrial and commercial uses
TFT Display Limitations
  • Viewing Angles: Some models have limited optimal viewing angles
  • Contrast Ratio: May be limited compared to other technologies
  • Power Consumption: Backlighting increases power needs
  • Response Time: Potential motion blur in fast-moving images
  • Flexibility: Limited flexibility in some designs
  • Color Gamut: May be narrower than some alternatives
