8.2 Inch Round TFT Display with 1080x1080 Resolution and 500c/d Brightness for High Clarity Applications
| Menşe yeri | ÇİN |
|---|---|
| Marka adı | HuaXin |
| Sertifika | ISO14001/ISO9001/IATF16949 |
| Model numarası | HX082YMO-E40 |
| Min sipariş miktarı | 1000 |
| Fiyat | pazarlık edilebilir |
| Ambalaj bilgileri | blister+köpük kutusu+kabarcık çanta+iç karton+ana karton |
| Teslim süresi | 6weeks ~ 8 hafta |
| Ödeme koşulları | T/T |
| Yetenek temini | Ayda 100 bin. |
Ücretsiz numuneler ve kuponlar için benimle iletişime geçin.
Naber:0086 18588475571
sohbet: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Ekran Teknolojisi | Dairesel TFT | İsim | Dairesel TFT Ekran |
|---|---|---|---|
| Boyut | 8.2 | Çözünürlük | 1080x1080 |
| Oncell dokunmatik IC | FT8201P | Görünüm açısı | Serbest bakış açısı |
| Arayüz | MIPI | ||
| Vurgulamak | 8.2 Inch Round TFT Display,1080x1080 Resolution Round TFT Display,500c/d Brightness Round TFT Display |
||
Mesaj panosundan ihtiyacınız olan ürünleri işaretleyip bizimle iletişime geçebilirsiniz.
Ürün Açıklaması
8.2 Inch Round TFT Display
High-resolution 1080x1080 round display with 40-pin MIPI interface and 500cd/m² brightness, featuring on-cell touch technology.
Product Specifications
| Parameter | Value |
|---|---|
| Part No. | HX082YMO-E40 |
| Display Size | 8.2 inch round TFT display |
| Outline Size (mm) | 219*224*4 |
| AA Size (mm) | 208*208 |
| Resolution | 1080*1080 |
| Interface | 40 PINS MIPI |
| Brightness | 500cd/m² |
| View Angle | All directions |
| Touch | On-cell touch (FT8201P controller) |

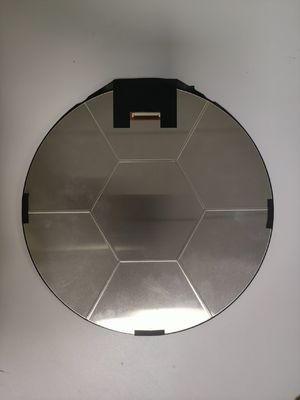

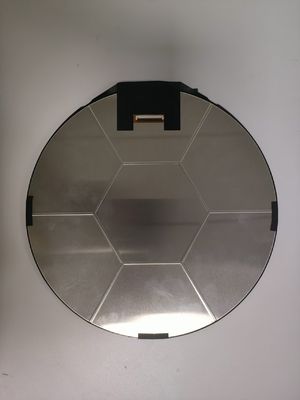

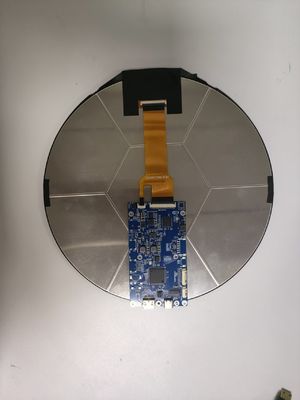

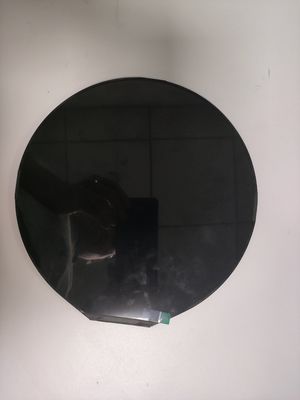

Product Images
Technical Drawings
TFT Technology Overview
Manufacturer Information
Huaxin Technology (Enshi) Co., LTD - Established 2009 in Hubei, Enshi
Company Advantages
- Cost-effective inland production base
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry expertise
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Profile
- Specializes in LCD, LCM, TFT, backlight, and OLED technologies
- LCD product range: VA, TN, HTN, STN, FSTN, CSTN
- LCM product range: COB, TBA, COG, TP, LED backlight
- Registered capital: 20 million
- 500+ employees (10% R&D, 15% QC)
Production Capacity
| Product Type | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand/Day |
Product Applications
- Car navigation systems & printers
- Video communication & digital advertising
- Automotive & medical devices
- Fitness equipment & handheld devices
- Industrial control & home appliances
TFT Display Advantages
- Superior Image Quality: High resolution, sharpness, and color accuracy
- Fast Response Time: Quick pixel switching for smooth motion
- Wide Viewing Angles: Clear visibility from multiple positions
- Energy Efficient: Lower power consumption than alternatives
- Size Flexibility: Available from small to large panel sizes
- LED Backlit: Bright, uniform illumination
- Versatile Applications: Suitable for diverse industries
TFT Display Considerations
- Viewing angles may be limited compared to some technologies
- Contrast ratio may be lower than alternative displays
- Backlighting affects power consumption
- Potential for motion blur in fast-moving content
- Limited flexibility in curved applications
- Color gamut may be narrower than some alternatives
